Structural Decomposition

[pdf manuscript] 80-citation manuscript

[talk] slides about the categorization system

[link] explaining parallel pop-out of visual search

A structure is decomposed with two principally different methods, the generation of a local/global space for each contour, and the generation of the symmetric axes for image regions. The decomposition can also explain most pop-out phenomena of human visual search.

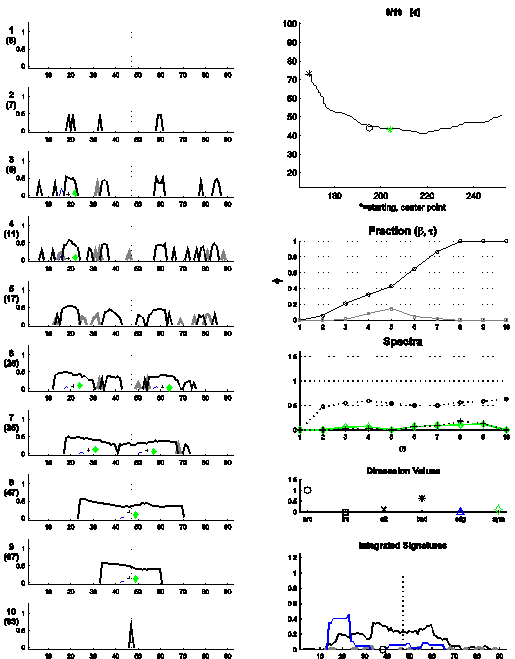

Local/Global Space: For each contour, a window is iterated through the contour, which classifies whether a selected segment is a ‘bow’ or an ‘inflexion’, creating thereby signatures for a given window size. This is carried out for different window sizes to generate the local/global space, which contains a wealth of structural information. Here the one for a wiggly arc:

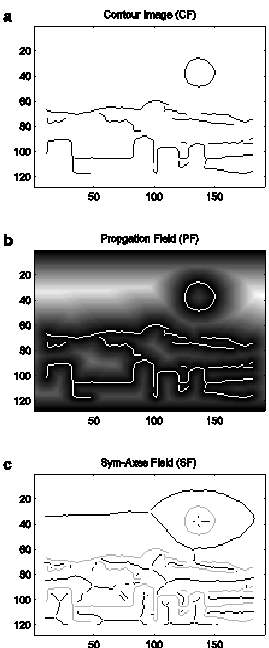

Symmetric Axes: I use a wave-propagation process to generate the symmetric axes:

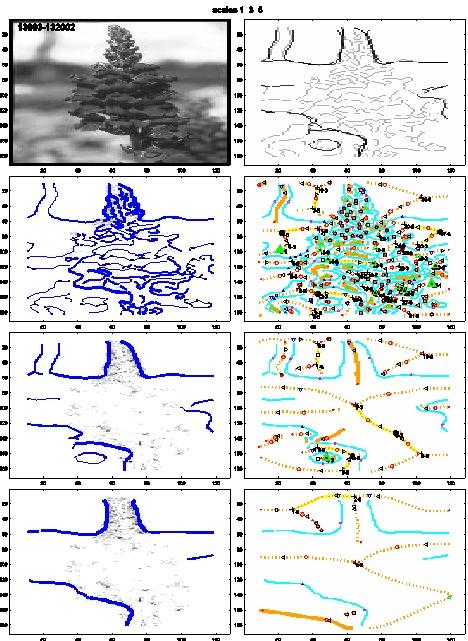

This shows the full decomposition output for one image at different scales:

The decomposition returns many parameters. The challenge is now to create a useful multi-dimensional space, with which one can perform perfect categorization for arbitrary images. I have already worked toward that direction by classifying the images of the COREL and Caltech 101 collection:

[link to image classification] shows results from image classification (categorization), searches and sorting.

[link to COREL categorization] basic-level categories sorted according to percentage correct

[link to COREL category labels] how we categorized the COREL image classes
